Пълна комплектация, със сондите, софтуера, опаковка. Оригиналът на AZ, работещ с компоненти на Mitsubishi. Уникална малка лаборатория за анализ в динамика на ферментационни процеси. Връзка към лаптоп или компютър, чрез TS-232 (COM) порт, софтуер за запис и визуализация, в комплекта. Работи отлично под Windows 7 с приложения софтуер. Необходим лаптоп с хардуерен COM порт, тестван с Panasonic Toughbook.Споделяне

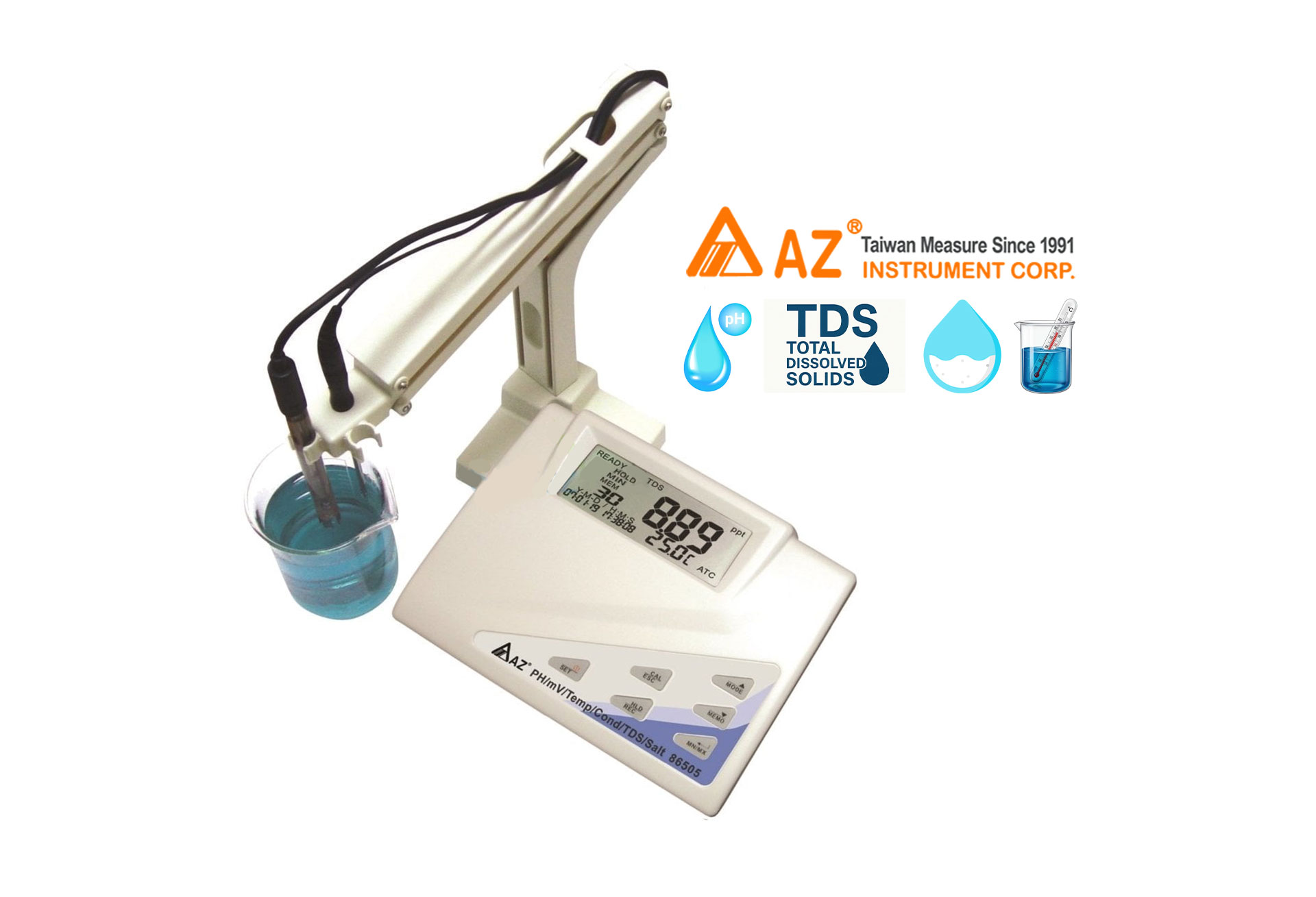

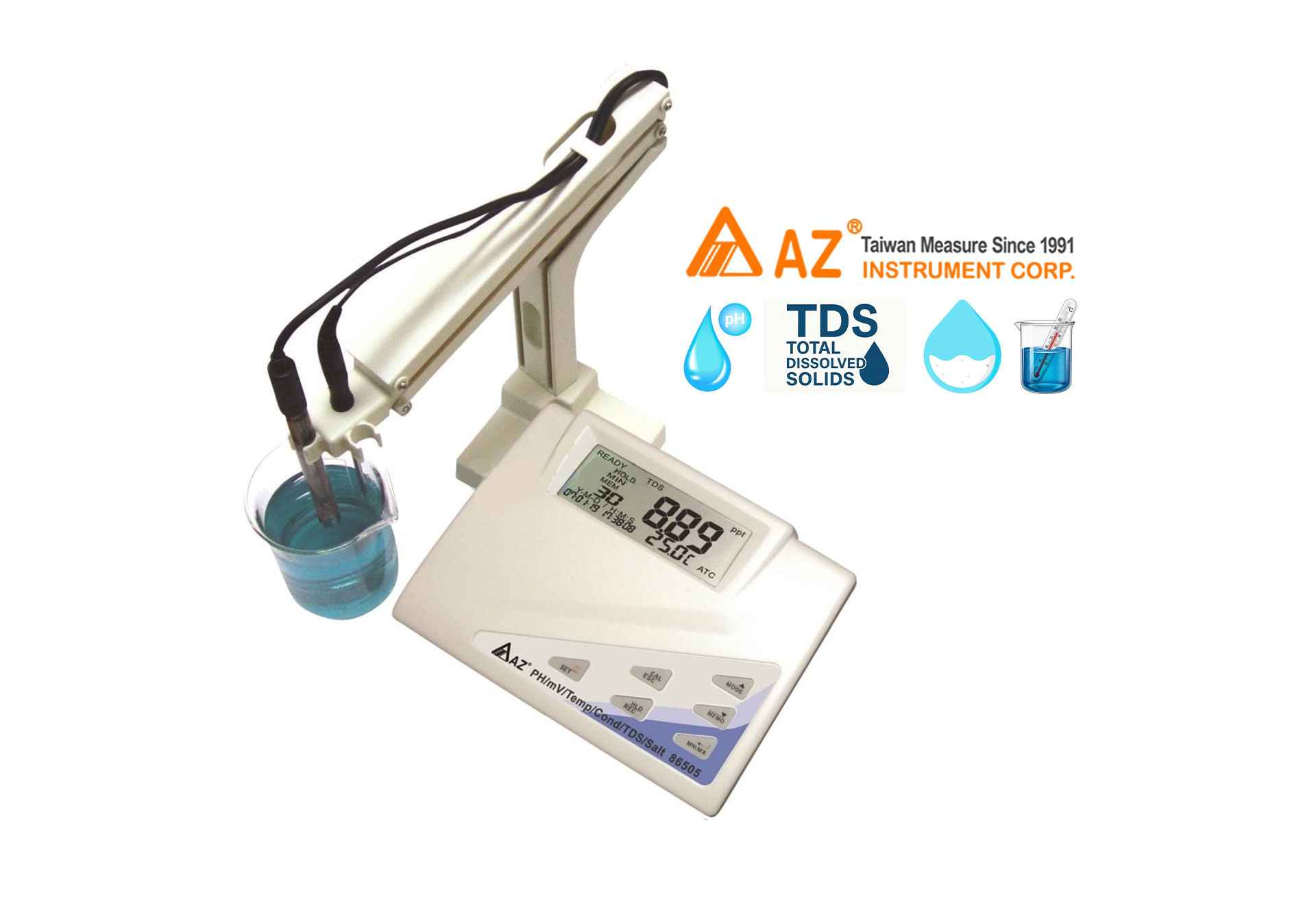

86505 AZ Bench Top Water Quality Meter - pH/ORP/Cond./TDS/Salinity features:
*Multi Display pH, mV, ORP, Conductivity, TDS, Salt & temperature
*Automatic buffer recognition to avoid errors during calibration
*Maximum 5 points calibration points for pH Benchtop meters
*Hold function to freeze the record
*Max./Min. review of memorized data
*Reliable and replaceable probe with temperature compensation
*Auto or manual temperature compensation
*Convenient to view calibration information of probe
*"Ready" icon on LCD indicates the reading is stable
*99 memories and could be downloaded to PC for analysis
*Collect data via RS232 interface by linking with PC
*Analog output for chart recorders
*Durable electrode holder for left & right side placement
*Auto or manual range for conductivity, TDS and salinity measurement
Application of 86505 AZ Bench Top Water Quality Meter - pH/ORP/Cond./TDS/Salinity:
The 86505 AZ Combo Bench Top Water Quality Meter can measure the pH, ORP (mV), Conductivity, TDS and Salinity. The big LCD screen could be multi display.
There is a drawer built-in the bottom of the 86505 AZ Combo Bench Top Water Quality Meter, which could let user to store testing data, exam result, memorandum or important notes in the drawer. That would be more convenient for any professional study and research in lab.
The holder of 86505 AZ Combo Bench Top Water Quality Meter could be fixed either on the right side or the left side of the meter, that design is friendly for different operation.
The pH and ORP measurement, the sensor electrode should be connected to the BNC port, and the Conductivity /TDS/ Salinity measurement, the sensor electrode should be connected to the MIC port.
We provide the following different pH probe could be operated with 86505 AZ Combo Bench Top Water Quality Meter,
VZ86P3AZ: ATC pH probe
VZ86P2AZ: pH probe without ATC function
VZ86P4AZ: pH probe for Low Ion Strength without ATC function
VZ86P6AZ: Full glass pH probe without ATC function
VZ86P7AZ: Sharp tip pH probe without ATC function
VZ86P1AZ: Flat surface pH probe without ATC function
User could connect the 86505 AZ Combo Bench Top Water Quality Meter to PC via RS232 cable to upload the real time measurement values and memories for further analysis.
If user need, the 86505 AZ Combo Bench Top Water Quality Meter also could connect to the chart recorder or other data collection devices via its ANALOG port.
The 86505 AZ Combo Bench Top Water Quality Meter could be the best tool for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aqua farm, swimming pool or other related industry.
86505 AZ Combo Bench Top Water Quality Meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
Specification of 86505 AZ Bench Top Water Quality Meter - pH/ORP/Cond./TDS/Salinity:
| Model | 86505 |
| pH Measuring Range | 0.00~14.00 |
| pH Resolution | 0.01 |
| pH Accuracy | ±0.02 |
| mV Measuring Range | ±1999 mV |
| mV Resolution | ±0.1 mV (-199.9~199.9 mV) or ±1 mV (others) |
| mV Accuracy | ±0.2 mV (-199.9~199.9mV) or ±2 mV (others) |
| Conductivity Measuring Range | 0~19.99, 0~199.9, 0~1999 us/cm 0~19.99, 0~199.9 ms/cm |
| Conductivity Resolution | 0.05% of Full Scale |
| Conductivity Accuracy | ±1% F.S ±1 digit |
| TDS Measuring Range | 0~19.99, 0~199.9, 0~1999 ppm 0~19.99, 0~199.9 ppt |
| TDS Resolution | 0.05% of Full Scale |
| TDS Accuracy | ±1% F.S ±1 digit |
| TDS Factor | 0.3~1.00 |
| Salinity Measuring Range | 0~11.38 ppt, 0~80.0 ppt (NaCl) |
| Salinity Resolution | 0.1 |
| Salinity Accuracy | ±1% F.S ±1 digit |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature coefficient | 0~10.0%/℃ |
| Temperature Resolution | 0.1 |
| Temperature Accuracy | ±0.5℃ |
| Compatible Probe | pH probe (86P3, 86P2, 86P4, 86P6, 86P7, 86P1) ORP probe (850P, 86P5) and Conductivity Probe (830P) |
| LCD Size | 105(L) * 40(W) mm |
| Operating Temperature | 0~50℃ |
| Operating RH% | Humidity ＜80% |
| Storage Temperature | -20~60℃ |
| Storage RH% | Humidity ＜90% |
| Meter Size | 260(L) * 168(W) * 58(H) mm |
| Weight | ~150g |
| Battery | 9V Adaptor |
| Standard Package | Meter, USA Plug Type Adaptor, Manual, Probe, Solution, Cable, Software CD, Probe Stand, Paper Box |
